    What is sheet metal fabrication?


    Sheet metal fabrication is a manufacturing method that involves cutting and bending sheets of metal to form different shapes.

    Sheet metal fabrication is more cost-effective than CNC machining when it comes to metal components with uniform wall thickness.

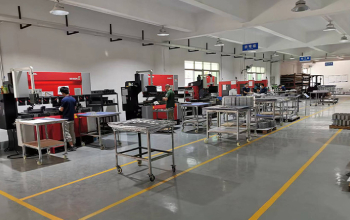

    Advantages of sheet metal fabrication
    We have an excellent technical team, which can be designed according to customers requirements.
    • 01
      Material selection
      Machining size:3000*1500mm
      Cutting thickness:20mm
      Tolerance : +0.05mm.
    • 02
      Finishing options
      Bead blasting, anodizing, plating, powder coating and custom finishes
    • 03
      Thickness options
      No matter the demands, we can produce your prototype or parts quickly and efficiency using out connected system of in-house production systems.

    Available materials for sheet metal

    Below is a list of our standard available metals for sheet metal fabrication.

    Aluminum Stainless steel Mild steel Copper Brass
    5052 301 1018 C110 H65
    1050 304 SPHC C101 H62
    1060 316L SPCC   TU1 C260
    1100 410 SGCC TU2 -
    5083 420 SECC T2 -
    5005 430 65MN - -



    Available sheet metal fabrication processes

    Our network of Manufacturing Partners gives you easy access to sheet metal fabrication capabilities to serve all your manufacturing needs.
     Name                                                                              Description                                                                  Allowable sheet thickness


        Laser cutting                           This manufacturing process usesa high-power laser beam to                               1-6mm (depending on material)
                                                    cut a material sheet.


    Bending                                   This manufacturing process uses dies to produce a U-shape,                               1-6mm (depending on material)
                                                    V- shape or channel shape along straight axis in ductile materials.



    Tolerances for sheet metal fabrication

    Surface finishes are applied after machining and can change the appearance, surface roughness, hardness and chemical resistance of the produced parts.

    Feature Tolerance                                       Allowable sheet thickness


        Bend angle                                                   ± .00787’’ (0.2 mm)

    Bending                                                          ± 1.0°

    Bend to edge                                                  +/- 0.010” (0.254mm)

    Available surface finishes for sheet metal

    The table below summarizes the standard tolerances of the parts produced by certified Hubs Manufacturing Partners.

    Name
    Description

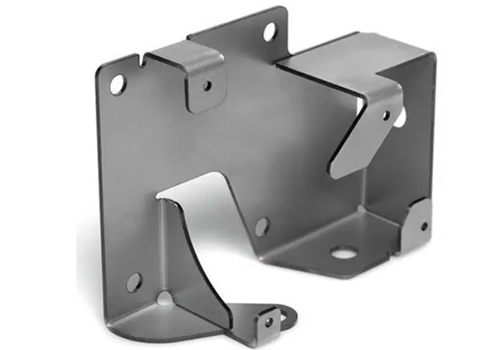

    Standard
    This is our standard finish. Parts as delivered as  cut and bent, no additional treatment applied. Sharp edges are broken and deburred for safe handling.

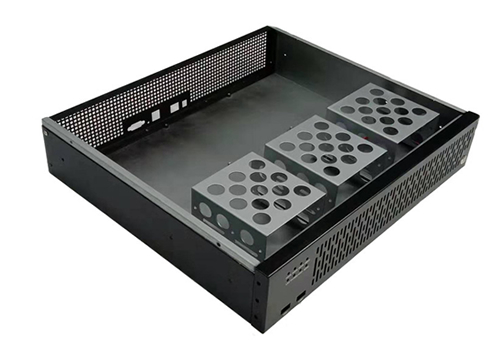

    Bead blasted + Anodized type II
    Parts are dipped in an anodizing bath (type II) after bead blasting. Ideal for increasing the corrosion resistance of the part. Sharp edges are broken and deburred for safe handling.

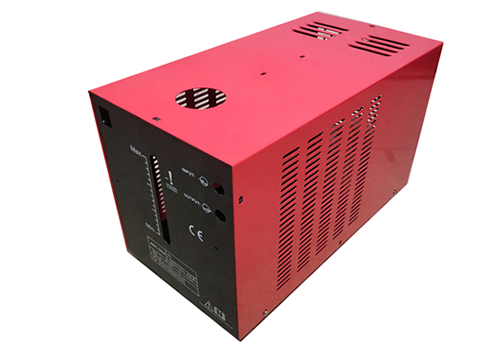

    Powder coated
    Powder coating layer is applied directly after fabrication. Sharp edges are broken and deburred for safe handling.
